Luxeon LXS8-PW30 LED |
|
 View cart |
| Description | |
 |
Phillips Lumileds Luxeon S1000 series LED, new old stock, bulk packed from trays. This is a powerful device for a compact cavity LED, and has an output of 1390 lumens at 25 volts. The cavity contains nine LED dies wired in series, which are mounted to a complex wafer with gold traces. This LED also produces decent color rendering, with a CRI of 80 and a color temperature of 3000k, the light has a faint yellowish tint that is pleasing to the eye. |
| More |

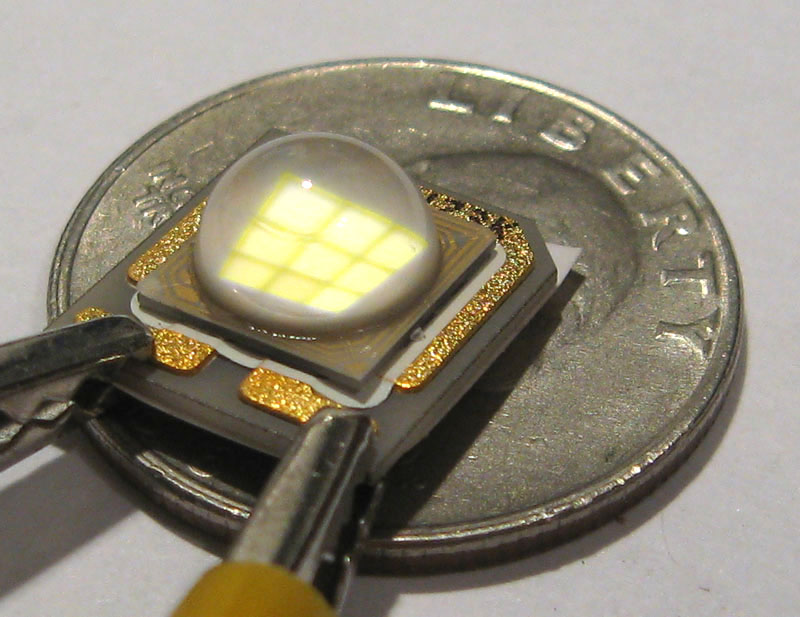

Lumileds Luxeon S1000 LED, normal operation.

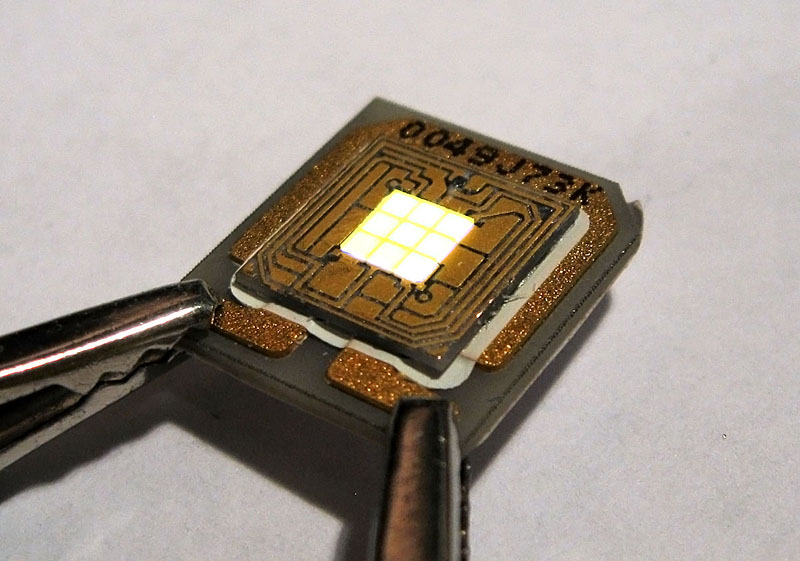

With the lens removed the nine LED dies can be easily seen.

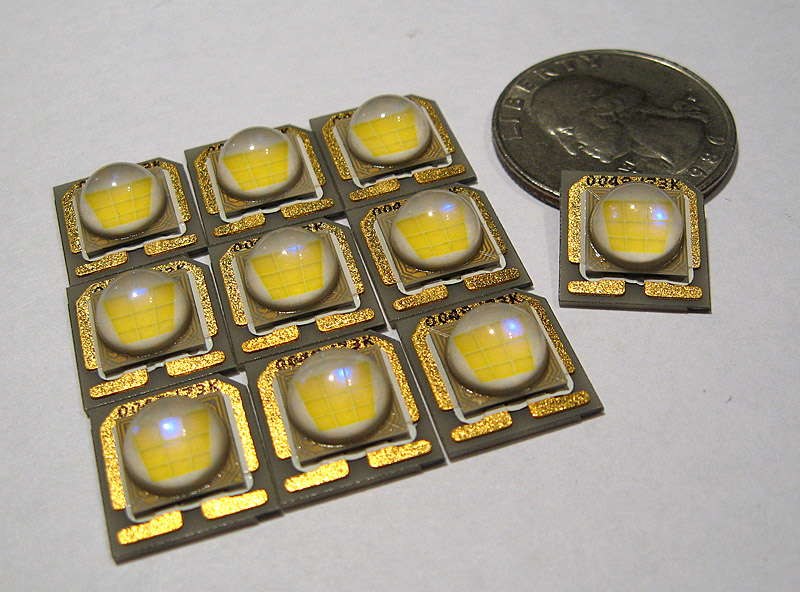

Luxeon LXS8-PW30 LEDs, at rest.

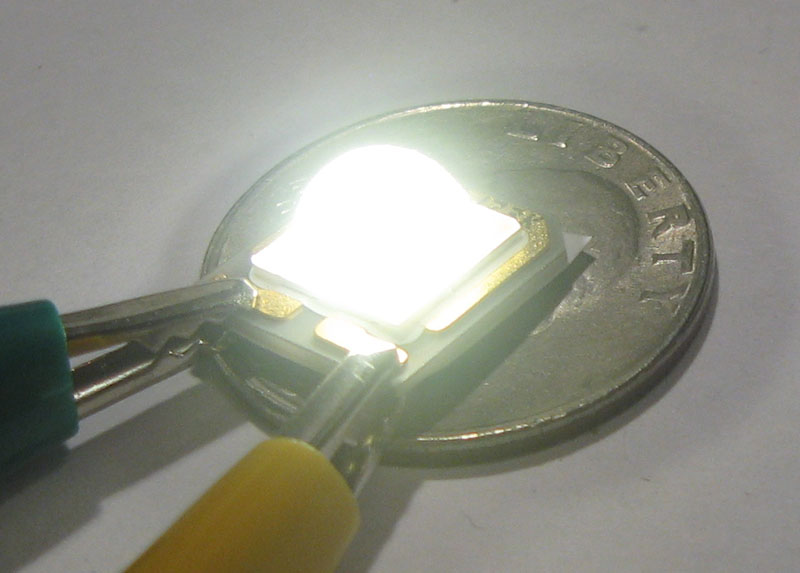

This LED can produce 1400 lumens at full power

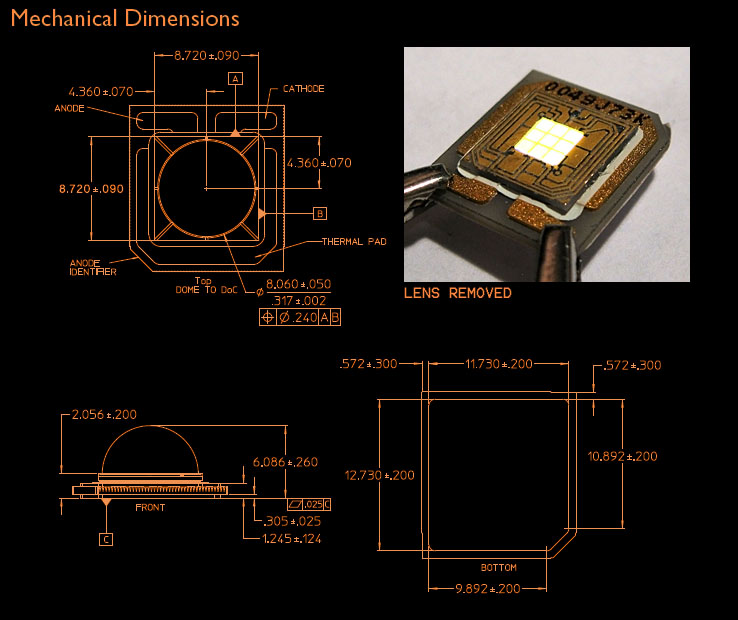

Luxeon LXS8-PW30 LED, dimensional datasheet
| Catalog No. | Price | Lead Time |
| LXS8-PW30 | US$2.98 | 22 units in stock |
| Add to Cart |
| Return to LED Emmitters |
