Futaba 9CT06 VFD Tube
Written by AnubisTTP on 2010-07-17


The Futaba 9CT06 is a tiny 9 digit vacuum fluorescent display, designed for use in handheld calculators. This display has a long tubular envelope with a central evacuation nipple and conventional 7-segment digits with decimal points. The 9CT06, like most VFD's, has a control grid installed above each digit to allow for multiplexed displays. The tube has color-coded flying leads which exit from both sides of the display.


Futaba 9CT06 VFD Tube

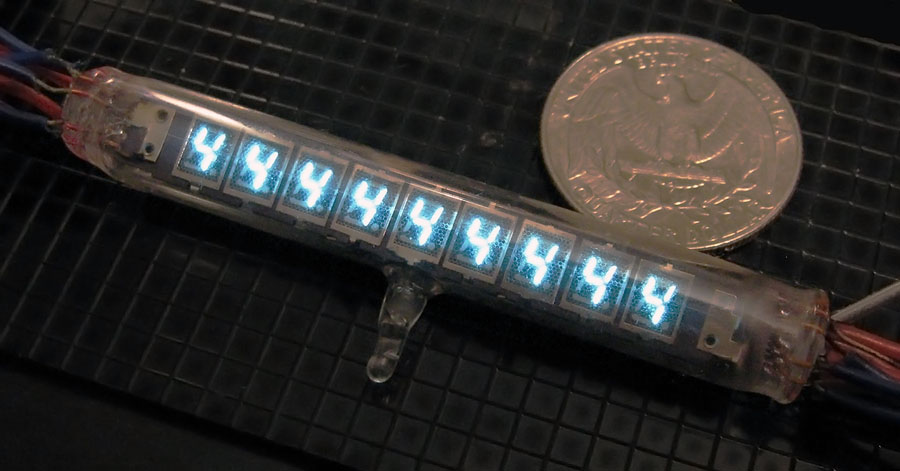

Futaba 9CT06 vacuum fluorescent display, normal operation.
