Sperry 2K41 Klystron Tube
Written by AnubisTTP on 2006-10-11

Description

The Sperry 2K41 is a two-cavity mechanically tuned klystron used in various military radar and communications systems. This tube generates frequencies from 2660 to 3310MHz, with a filament voltage of 6V, beam voltage of 1200V, and a reflector voltage of 750V. The two halves of the 2K41 are joined by a flexible metal accordion, which allows the dimensions of the internal cavity to be changed by turning the large knob on the right of the device.

More

Sperry 2K41 Klystron Tube

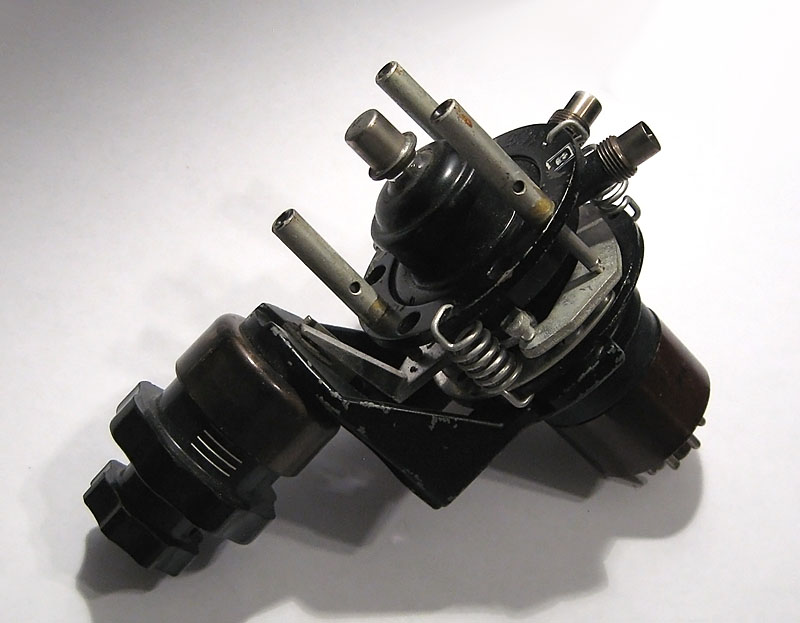

Sperry 2K41 klystron tube.
