NEC LD8113 VFD Display
Written by AnubisTTP on 2006-10-11


The LD8113 is a large, attractive VFD tube with a flat top and flying leads. The tube's unusual segment arrangement allows a single tube to generate both numbers and signs, as well as some troublesome alphabetical characters. Though the tube appears to have 10 segments, the four horizontal and vertical segments in the center of the display are ganged together to form an 8-segment tube. Digit height is 14mm and envelope height is 43mm excluding the tube's nipple.


NEC LD8113 Vacuum Florescent Display Tube

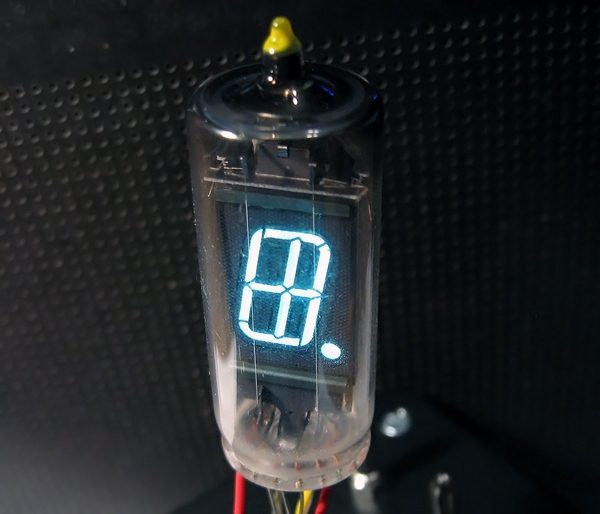

NEC LD8113 VFD display tube.

NEC LD8113 VFD Display

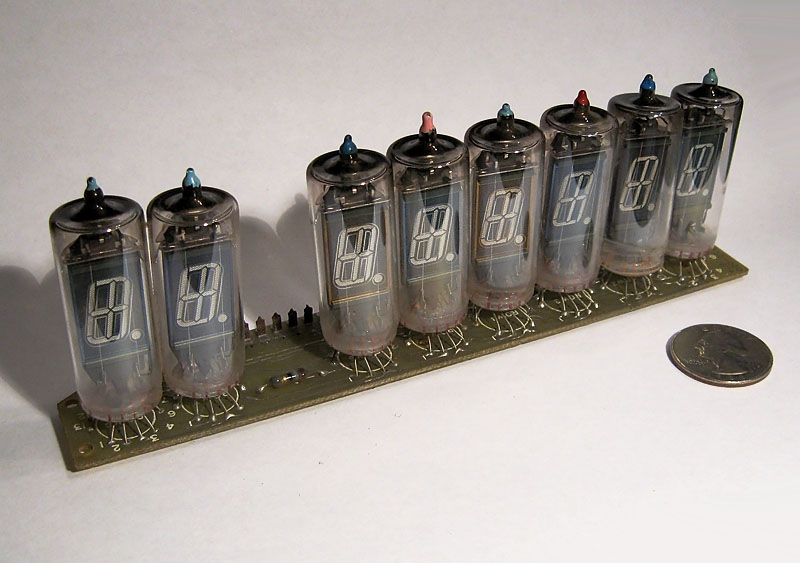

This module, most likely extracted from a desktop calculator, contains 8 LD8113 VFD tubes mounted to a carrier PCB.
