Sperry 2K46 Klystron Tube
Written by AnubisTTP on 2007-01-29

Description

The 2K46 is a tunable air cooled klystron frequency tripler, with an output of 8.1 to 10 Ghz. Tuning is accomplished mechanically; three pleated baffles can be adjusted by turning the threaded shafts located around the circumference of the tube. The heater voltage is 6.3 volts and the output is rated at 1.5kV. The inputs and outputs are coaxial, and exit from the sides of the tube instead of through the octal base.

More

Sperry 2K46 Klystron Tube

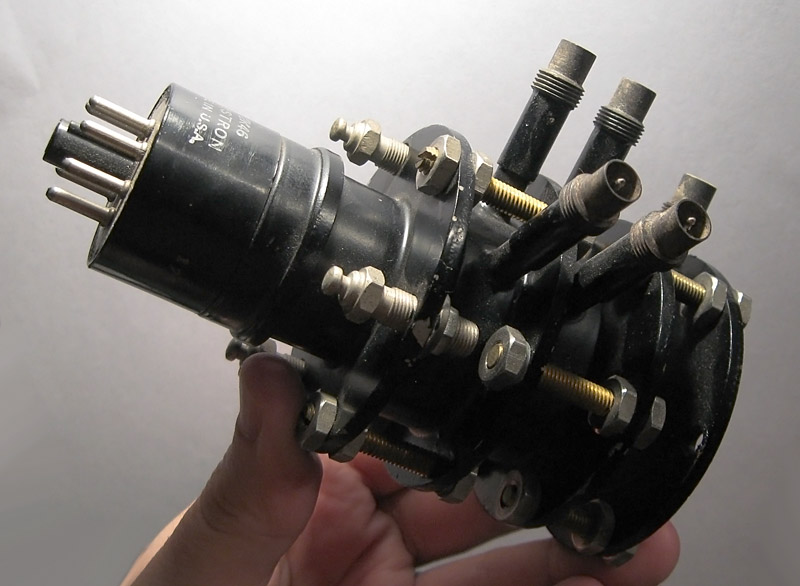

Sperry 2K46 klystron frequency tripler.
