Unknown Mfr. 8-Digit Nixie Display (B5870)
Written by AnubisTTP on 2006-09-27

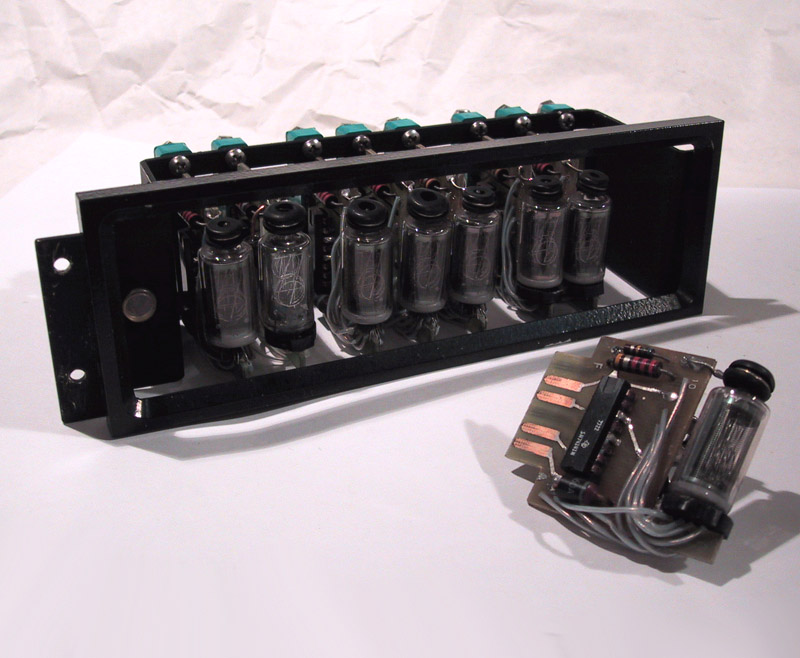

This is a modular TTL-driven display with Burroughs B5870 side-viewing nixies. Each nixie is mounted on its own removable card with an attached 7441 driver IC. The source of this module is unknown, but it most likely was removed from a frequency counter or voltmeter. The tubes are soldered directly to each card... when a tube fails, the entire card must be replaced.


8 Digit B5870 Nixie Display
8 digit Nixie tube display, making use of B5870 display tubes on TTL driver cards.
