Western Electric 316A UHF Triode Tube
Written by AnubisTTP on 2013-03-22

Description

The 316A is a high power UHF triode in a large, spherical envelope. Commonly called a 'doorknob' or 'UFO' style envelope by collectors, this tube was manufactured by a number of vendors including Tung-Sol and General Electric; the example shown here was produced by Western Electric. The two cooling fins on the anode help to dissipate heat from the tightly packed components around the filament.

More

Western Electric 316A UHF Triode Tube

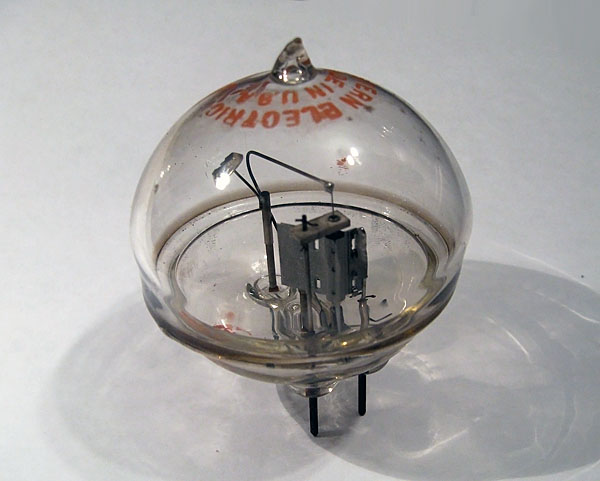

Western Electric 316A UHF triode, at rest.
