Toyo 6M-E5 & 6M-E10 Tuning Eye Tubes
Written by AnubisTTP on 2011-10-17



Description

Devices included in this entry:

Toyo 6M-E5 (180 volt target; pictured in thumbnail)
Toyo 6M-E10 (100 volt target)

This uncommon Japanese tuning eye, the Toyo 6M-E5, is one of the smallest end-view eye tubes ever made. The 6ME5 is tiny, only 18mm in diameter, and is utterly dwarfed by traditional tuning eyes like the 6E5. Even the base of the tube is shrunken: the tube's seven-pin button base is fitted to a phenolic cup, mimicking the appearance of much larger tubes. Toyo also made a lower voltage variant, the 6M-E10, which has a target voltage of only 100 volts. The 6M-E5 has a higher target voltage of 180 volts, but the tubes are otherwise identical.

The 6ME5 is rare but not unobtainable. While technically not the smallest end-view eye tube ever made, the 6ME5 is the smallest end-view tuning eye the average collector will ever have a chance to possess for themselves.

More

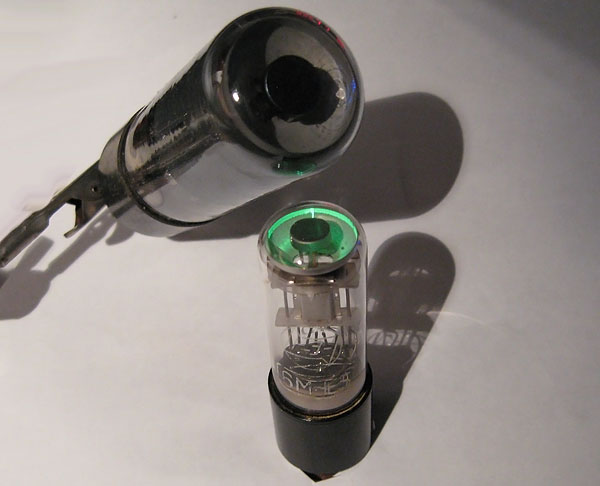

Toyo 6M-E5 Tuning Eye Tube
Toyo 6M-E5 tuning eye tube, normal operation.

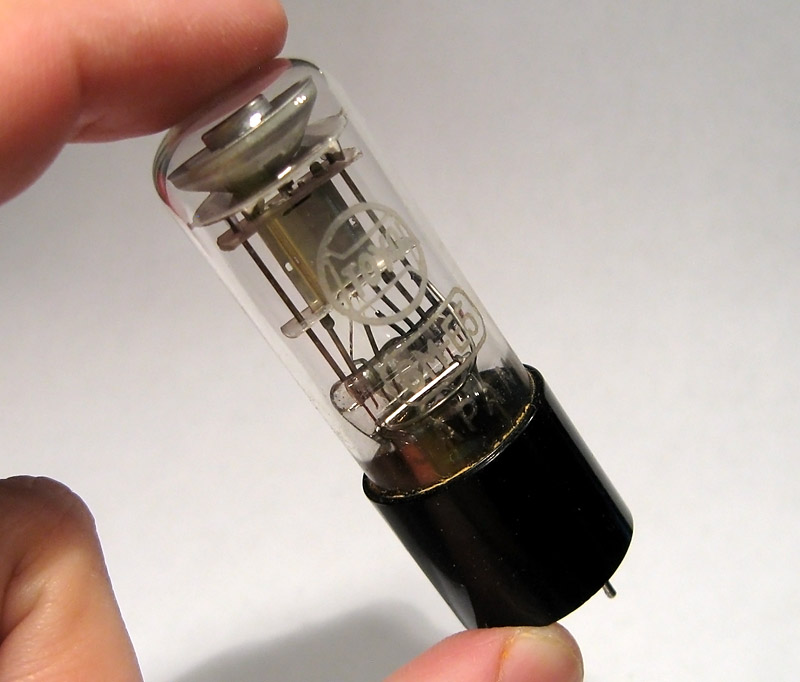

Toyo 6ME5 Eye Tube
Toyo 6M-E5 is one of the smallest tuning eye tubes ever made.

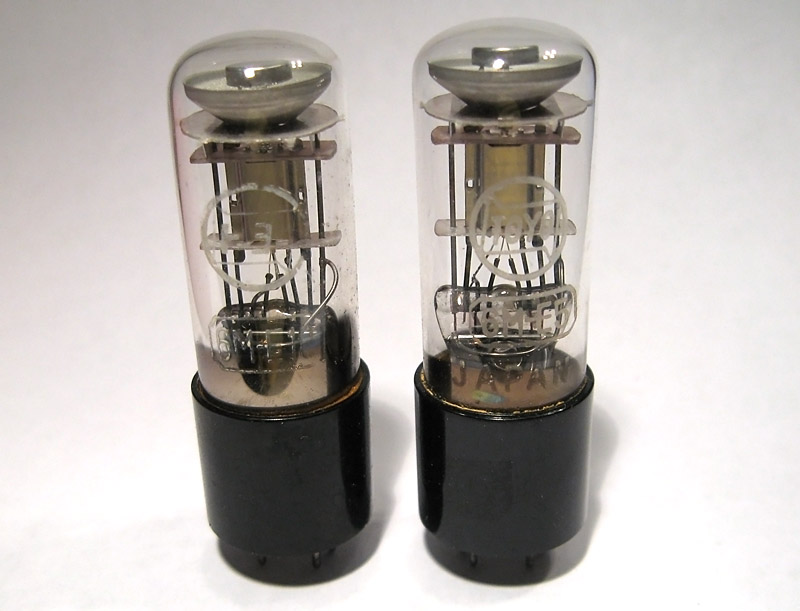

Toyo 6M-E10 Tuning Eye Tube
Toyo family photo, 6M-E5 shown with 6M-E10. The 6ME10 is a low power variant which has a target voltage of only 100 volts.
