Soviet Gazotron IN-28 Nixie Tube
Written by AnubisTTP on 2011-06-20

Description

The IN-28 is a top view Soviet neon display tube designed to be used as a single dot indicator in large tiled displays. Large numbers of IN-28 tubes would be chained together to form segmented and dot matrix patterns with each tube acting as a single pixel. The IN-28 uses the same size envelope as the popular Soviet-made IN-4 nixie tube but is equipped with a different base, a 7 pin flying lead type that required the tube to be directly soldered into the target device. The IN-28 is very bright, and displays built using this tube have excellent visibility.

Photos

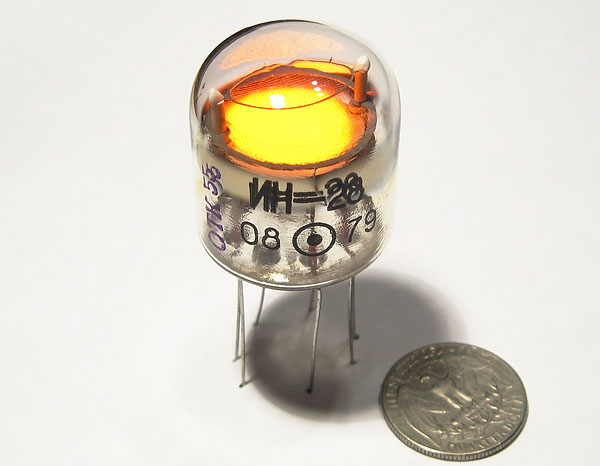

Soviet Gazotron IN-28
