Dialco Single Digit LED Module (Unknown P/N)
Written by AnubisTTP on 2009-08-08

Description

Manufactured by Dialco, this archaic-looking device is an early example of a single digit LED display module using a tiny FND-10 LED display. An attached PCB includes a 7448 BCD to 7-segment decoder and current limiting resistors. FND-10 displays are so small as to be practically unreadable; in an attempt to counteract this, Dialco has mounted a large removable magnifier on the front of the module.

More

Dialco FND-10 LED Display Driver

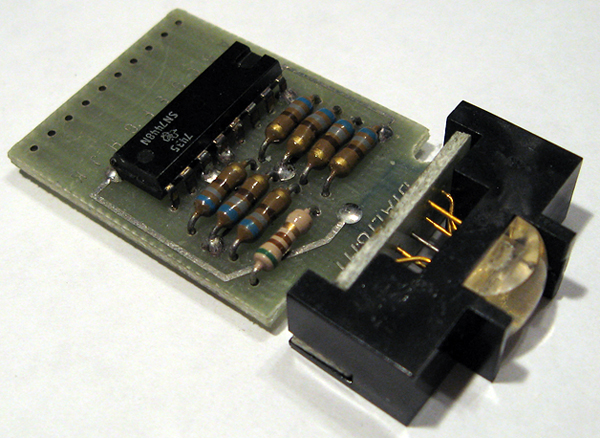

Dialco single digit LED display with driver hardware, unknown part number.

Fairchild FND-10 LED Display

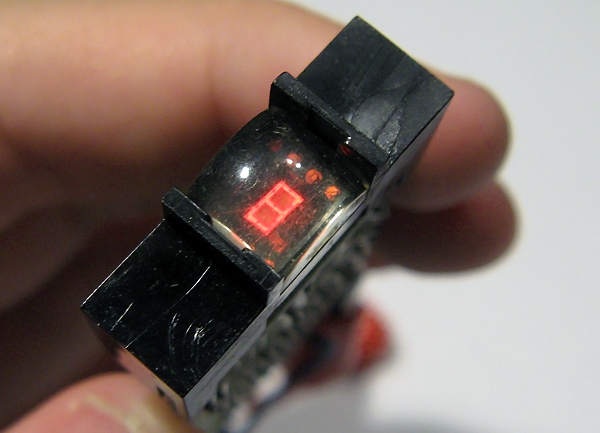

This display module contains a FND-10 seven-segment LED mounted behind a huge magnifier.
