Tung-Sol DT-1741C Digivac
Written by AnubisTTP on 2006-10-15

Description

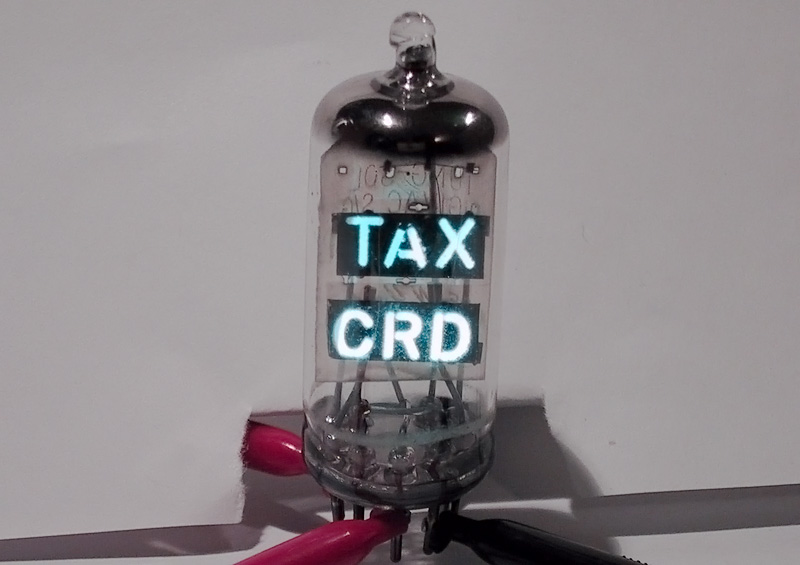

A "symbol" variant of the Digivac tube listed above, with two elements, one labeled 'TAX' and the other labeled 'CRD'. The tube has the same narrow nine-pin envelope as the DT-1704C, though only five of the pins are connected. This tube was originally salvage from the old NCR factory, and was intended for use in a NCR cash register. Though practically useless to the modern enthusiast, VFDs such as this which display something other than a segmented display are exceedingly rare.

Photos


Tung-Sol DT-1741C Digivac
