Pressler 'Globe' Spectrum Tubes
Written by AnubisTTP on 2008-06-03

Description

Devices included in this entry:

Argon spectrum tube (glass capillary vessel)
Krypton spectrum tube (glass capillary vessel, pictured in thumbnail)


Another example of a set of spectrum tubes with unusually shaped envelopes. These tubes have right angle electrodes like the "H" shaped tube below, but add the extra attachment of a globe shaped discharge chamber at one end of the capillary vessel. This construction style allows the tube to serve double duty as both a capillary emitter and a point spectral source.

More

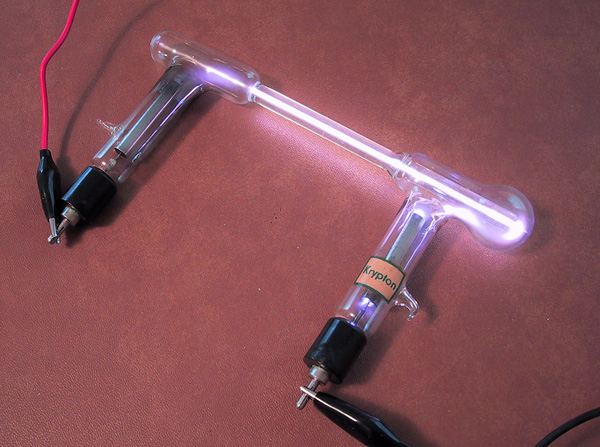

Pressler Krypton Spectrum Tube
Pressler krypton filled 'globe' style spectrum tube.

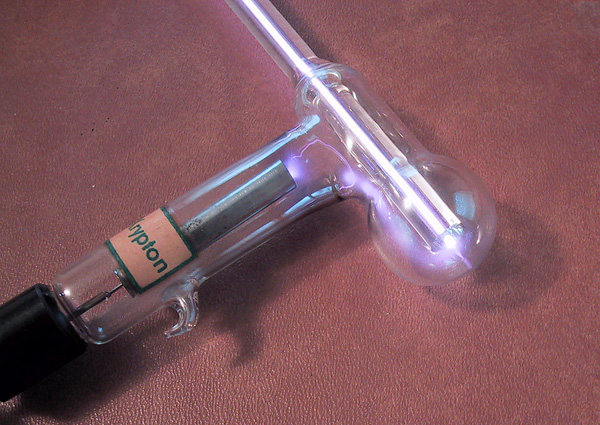

Pressler Krypton Hollow Cathode Lamp
The path of electron flow must make a 180 degree turn as it exits the orifice in the center of the globe.

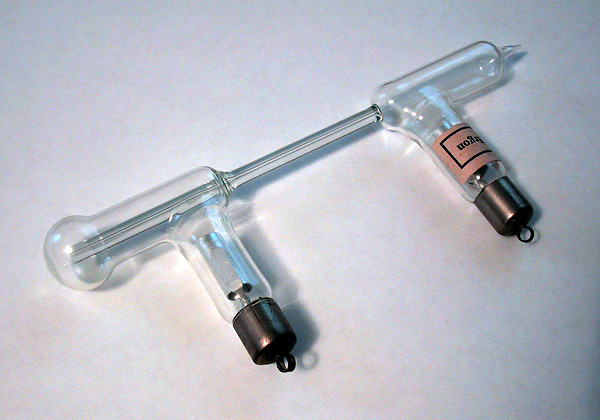

Pressler Argon Spectrum Tube
Argon filled version of this tube. Unfortunately, this sample has outgassed.
