Western Electric 730A Magnetron Tube
Written by AnubisTTP on 2008-05-19

Description

The Western Electric 730A is a non-tunable magnetron with an oscillating frequency of 9.375GHz, +/-30MHz. The 730A was used in military radar equipment. Note that the wooden base is part of the tube's original packing material, not an installable component. This base would mate with a tongue-and-groove arrangement in the tube's packing carton to hold it firmly in place.

More

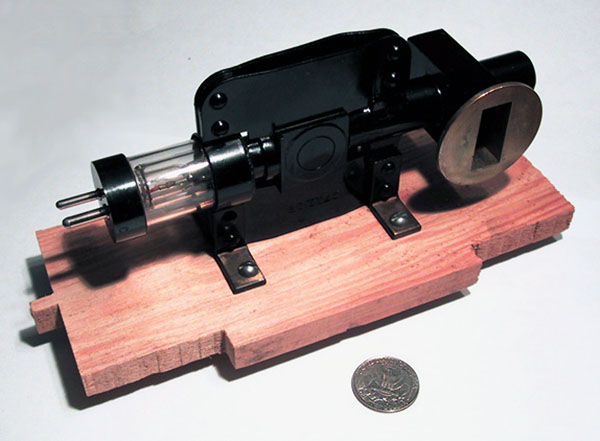

Western Electric 730A magnetron tube
Western Electric 730A magnetron tube.
