Soviet 3L341V LED
Written by AnubisTTP on 2008-04-16

Description

The 3L341V is a de-facto example of a Soviet-made LED. Manufactured in 1989, the 3L341V appears to be standard GaP green chemistry, but is encased in a 1970s-style metal can package with gold leads. The included datasheet indicates that they emit no less than 0.15 microlumens, for implementations where a 0.1 microlumen LED just won't cut the mustard. Needless to say, you won't need special eye protection to handle them.

More


Soviet manufactured 3L341 LED. The included datasheet indicates that they emit no less than .15 microlumens, useful for implementations where a .1 microlumen LED just won't cut the mustard. The only way to damage your eyes by looking at one of these LED's requires accelerating it to ballistic velocities first.

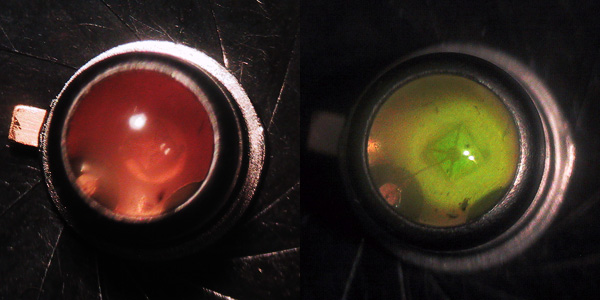

Die photos at 30 magnification. Note the flecks of debris in the epoxy. Apparently Russian diodes are not made in a clean room, or anything remotely resembling a clean room..

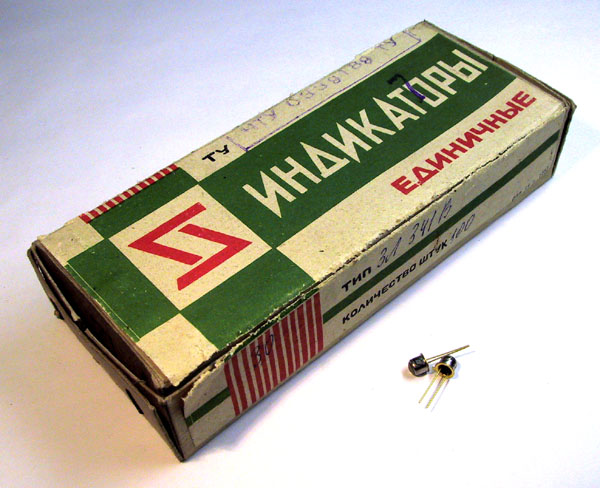

Carton for 3L341 LED's . The green writing on the top says "Indicators" in Russian.

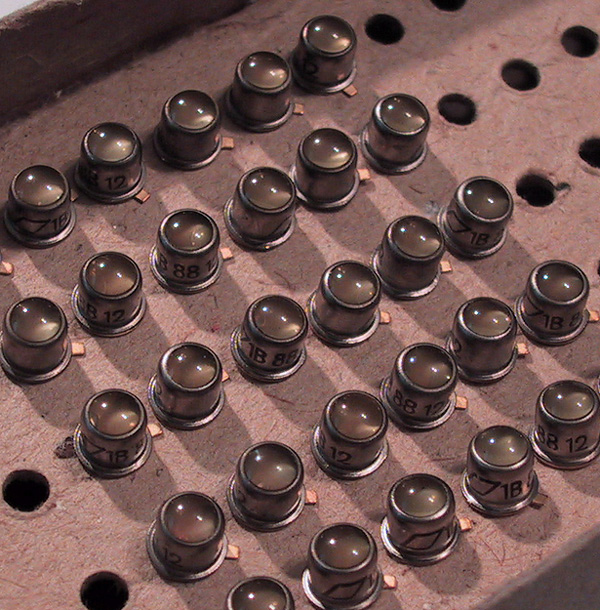

3L341 LED's in original packaging. Each carton contains 100 LED's
