Three-Five Systems TLMP-9210 Series LEDs (TLMP 9310, TLMP 9710)
Written by AnubisTTP on 2008-04-16

Description

Devices included in this entry:

Three-Five Systems TLMP 9210 (Green hermetic LED, 2 pin TO-46 package)
Three-Five Systems TLMP 9710 (Red hermetic LED, 2 pin TO-46 package)
Three-Five Systems TLMP 9310 (Orange hermetic LED, 2 pin TO-46 package)


The TLMP 9x10 series of LEDs are metal can, hermetically sealed solid state indicators. Each LED is mounted in a a TO-46 package with a special frosted epoxy fill which provides an even, diffused light. These LEDs are reasonably bright and usable compared to early metal can LEDs like the MV2 and H1, and are comparable to a standard 5mm epoxy LED from the 1980s.

We have been unable to exactly date these LEDs, but would estimate their date of manufacture to be in the late 1980s based on their construction style.

More

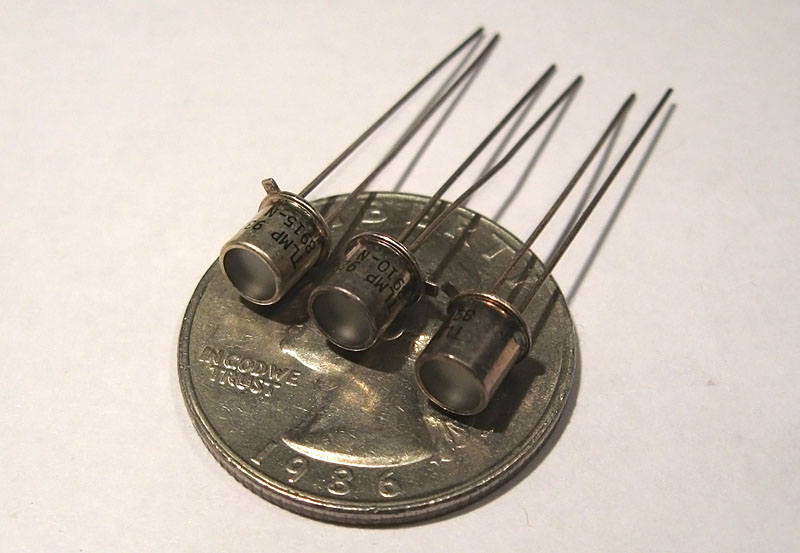

Three-Five Systems TLMP 9x10 LEDs. Part numbers from left to right; 9310, 9210, 9310.

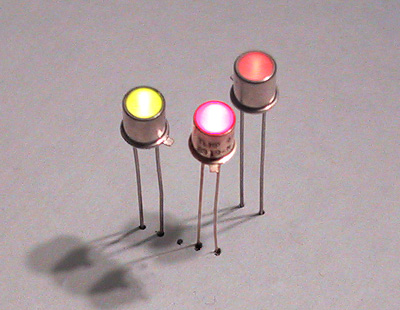

Three-Five Systems TLMP 9x10 LEDs. Part numbers from left to right; 9210, 9710, 9310.

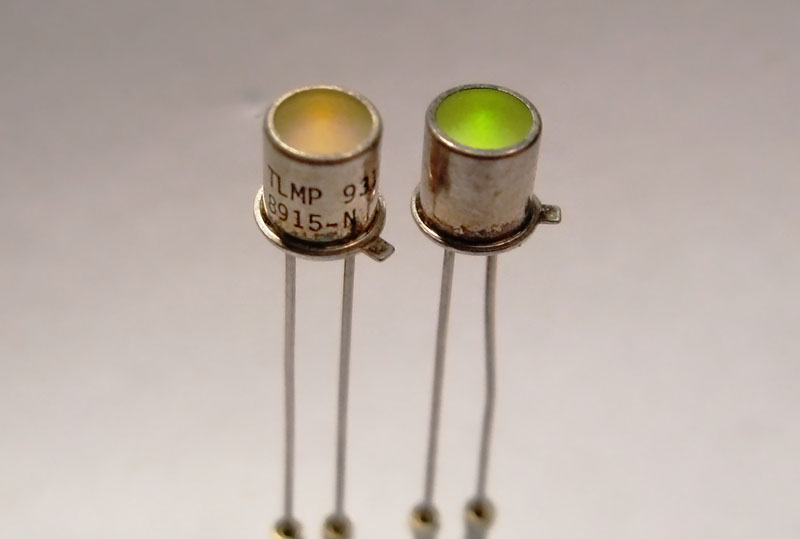

The TLMP 9x10 series LEDs are encased in metal TO-46 packages.
