United Detector Technology UDT PIN-10D Planar Silicon Photodiode
Written by AnubisTTP on 2020-09-08



Description

This is a PIN-10D planar silicon photodiode, a monstrous solid state photon collector produced by the United Detector Technology. The active area of this device is over 11mm in diameter, and the silicon die is packaged in a large metal enclosure that would make any standard TO-5 photodiode feel positively emasculated. The PIN-10D does not have pins; instead a standard BNC socket connector has been incorporated directly into the device's package.

More

UDT PIN-10D Planar Silicon Photodiode

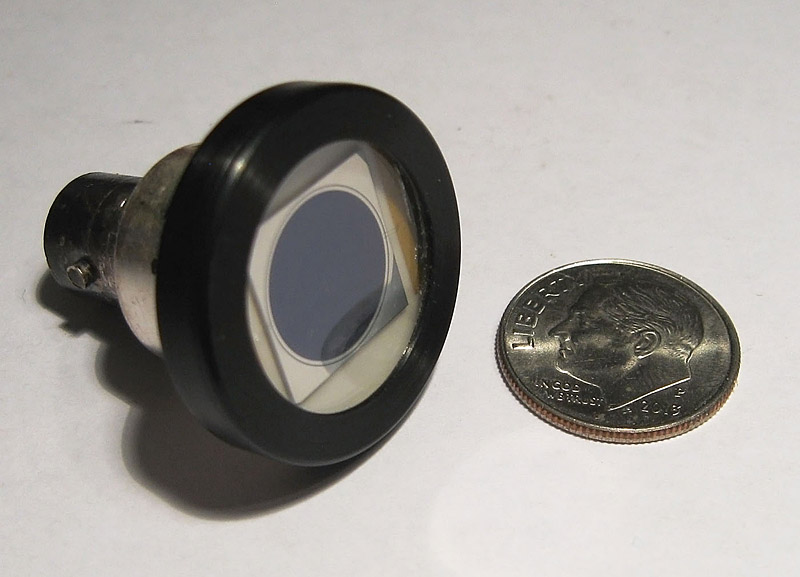

UDT PIN-10D photodiode, at rest. The active area of this device is 11.28mm in diameter.

UDT PIN-10DP Planar Silicon Photodiode

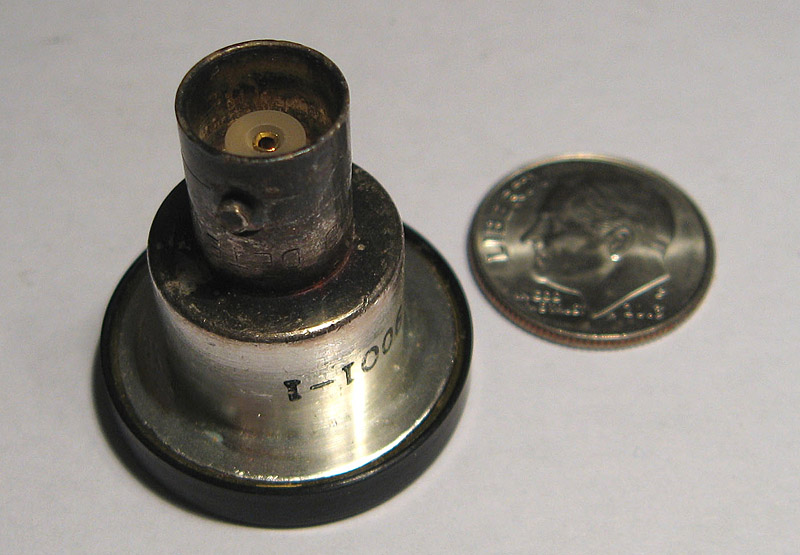

The PIN-10D has a BNC connector incorporated directly into its package.
