National Semiconductor MM5203 EPROM Integrated Circuit
Written by AnubisTTP on 2021-02-27

Description

The National Semiconductor MM5203 is a 2048 bit UV erase PROM that was in production for a number of years. The earliest versions of this chip are mounted in a white ceramic carrier with gold leads and a square cavity window. Later versions switched to a gray ceramic package, but retained the square cavity window and gold leads. The most modern and boring versions of this chip are mounted in a standard ceramic package with a round erase window and tinned leads. In normal operation the window is covered with a label or sticker, to prevent ambient UV light from slowly destroying the data stored on the PROM.

More

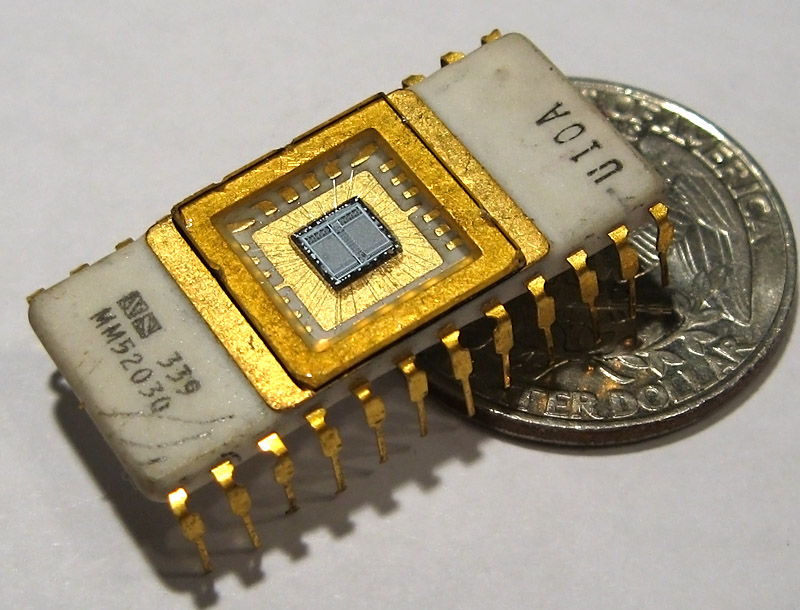

National Semiconductor MM5203 EPROM Integrated Circuit Chip
National Semiconductor MM5203 EPROM IC, lying in state.
