Eimac 2-01C Rectifier Tube
Written by AnubisTTP on 2007-03-06


The 2-01C is a high frequency rectifier tube rated at 2.8 Ghz. This tube makes use of a fragile metal-to-glass seal which also contains the tube's pinched-off evacuation nipple. 2-01C tubes were commonly used in the AC probes for Hewlett Packard vacuum tube voltmeters, but were replaced in newer models with the EA53 tube, a more rugged tube with a spring-loaded contact.


Eimac 2-01C Rectifier Tube

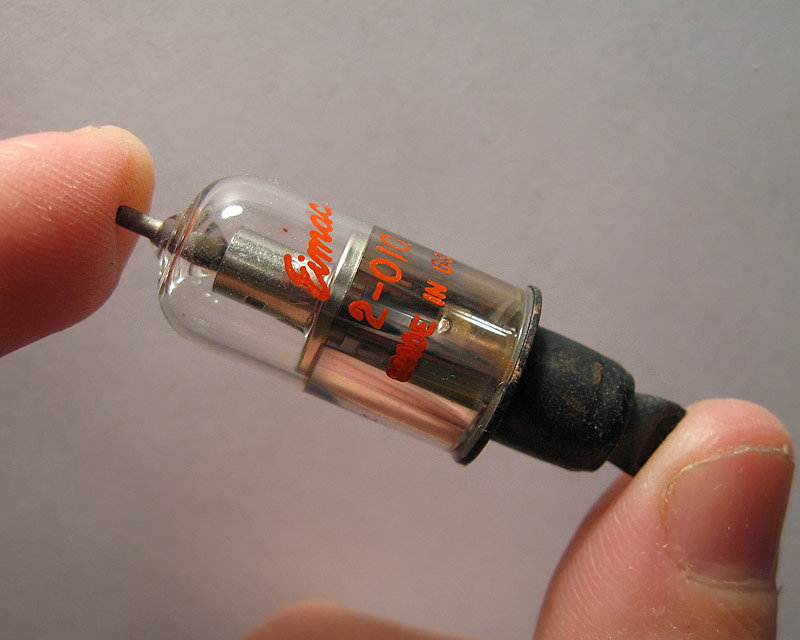

Eimac 2-01C rectifier tube.
