NEC LD8012 VFD Tube
Written by AnubisTTP on 2007-01-19

Description

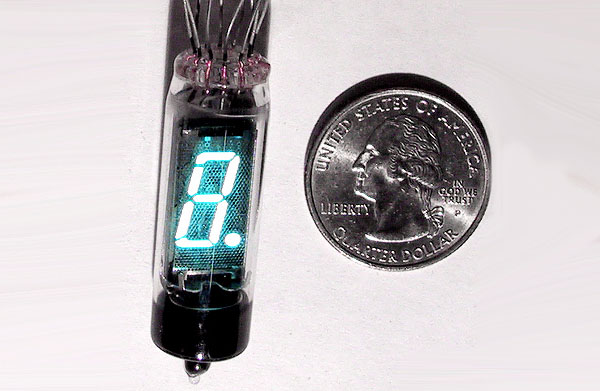

The LD8012 is a VFD tube designed for upside down mounting. The tube has twelve flying leads which exit the upper surface of the tube, the nipple and getter are on the underside. Digit height is 20mm and the envelope is 37mm high. The picture to the left was taken with a digit voltage of 25 volts and a filament voltage of 1 volt.

More

 NEC LD8012 VFD tube
NEC LD8012 VFD display tube, normal operation. The LD8012 is designed for upside-down mounting in calculator displays.
