Raytheon 2J51 Magnetron Tube
Written by AnubisTTP on 2006-12-22

Description

The 2J51 is a tunable air-cooled magnetron with a range of 8.5Ghz to 9.6Ghz. Unfortunately this sample is badly damaged and missing several components, including the large semicircular magnets that would be clamped to each side of the tube. The 2J51 can generate microwave pulses in excess of 40 kilowatts.

More

Raytheon 2J51 Magnetron Tube

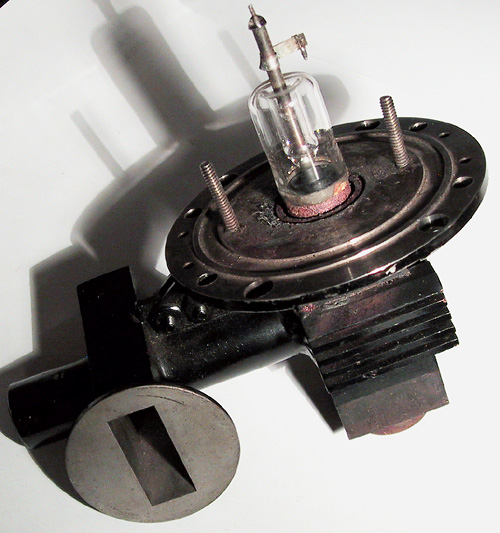

Raytheon 2J51 magnetron tube.
