EMI 9826B Photomultiplier
Written by AnubisTTP on 2012-06-10

Description

The EMI 9826B is a small end view photomultipler tube designed for use in the scintillation counters used within positron emission (PET) medical scanners. The 9826B pas a peak wavelength of 420 nanometers and is characterized as having a high speed response and immunity to magnetic fields within a relatively compact package. The unusual base is designed to facilitate testing; even though the tube is a flying lead type, it's long gold leads have been welded to a 14 pin button base. This is so the customer can insert the tube into a test fixture for characterization prior to installation in a final device, at which point the button base would be clipped off.

More

EMI 9826B Photomultiplier

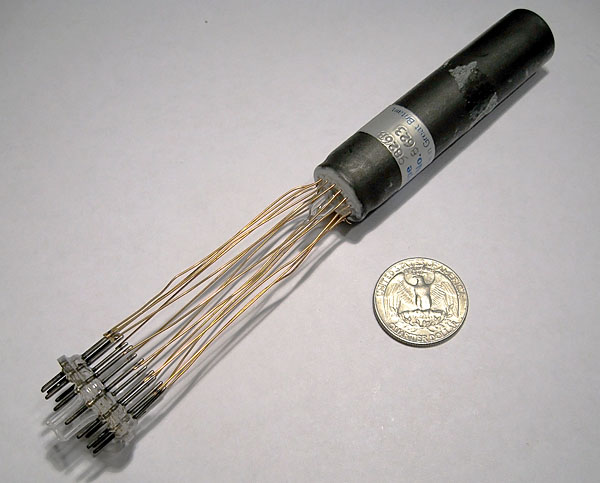

EMI 9826 photomultiplier. The button base is provided for testing purposes and would be trimmed off prior to final installation.
