Soviet Gazotron IN-12 Nixie Tube
Written by AnubisTTP on 2010-09-29

Description

The IN12 is the Soviet analog to Western oval Nixie tubes such as the Burroughs B5991 and 8422. To save on costs, the tube does not have a cathode to represent the number '5', instead an additional '2' stencil is used, mounted upside down. Digit height is 19mm and the diameter of the tube is 30mm at it's widest point. This tube is actually mechanically compatible with the 14 pin sockets used by the B5991, though the underside nipple requires that said sockets have a centrally located perforation for clearance.

This tube comes in two slightly different versions, the IN12B, which has a decimal point, and the IN12A, which does not. The IN-12 is widely used by hobbyists in projects, due to it's low cost and general ruggedness.

Photos

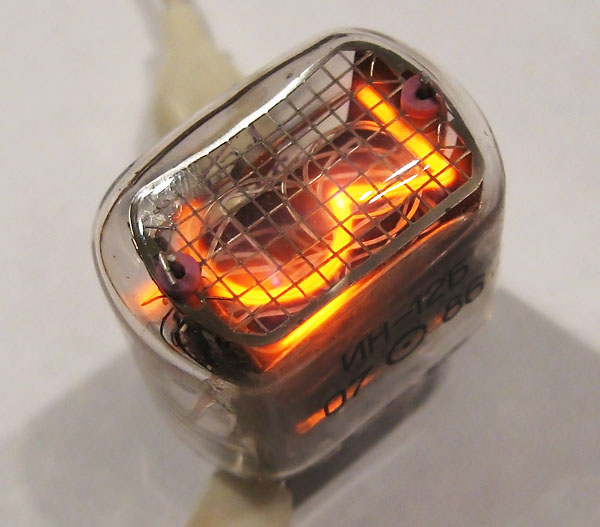

Soviet Gazotron IN-12
